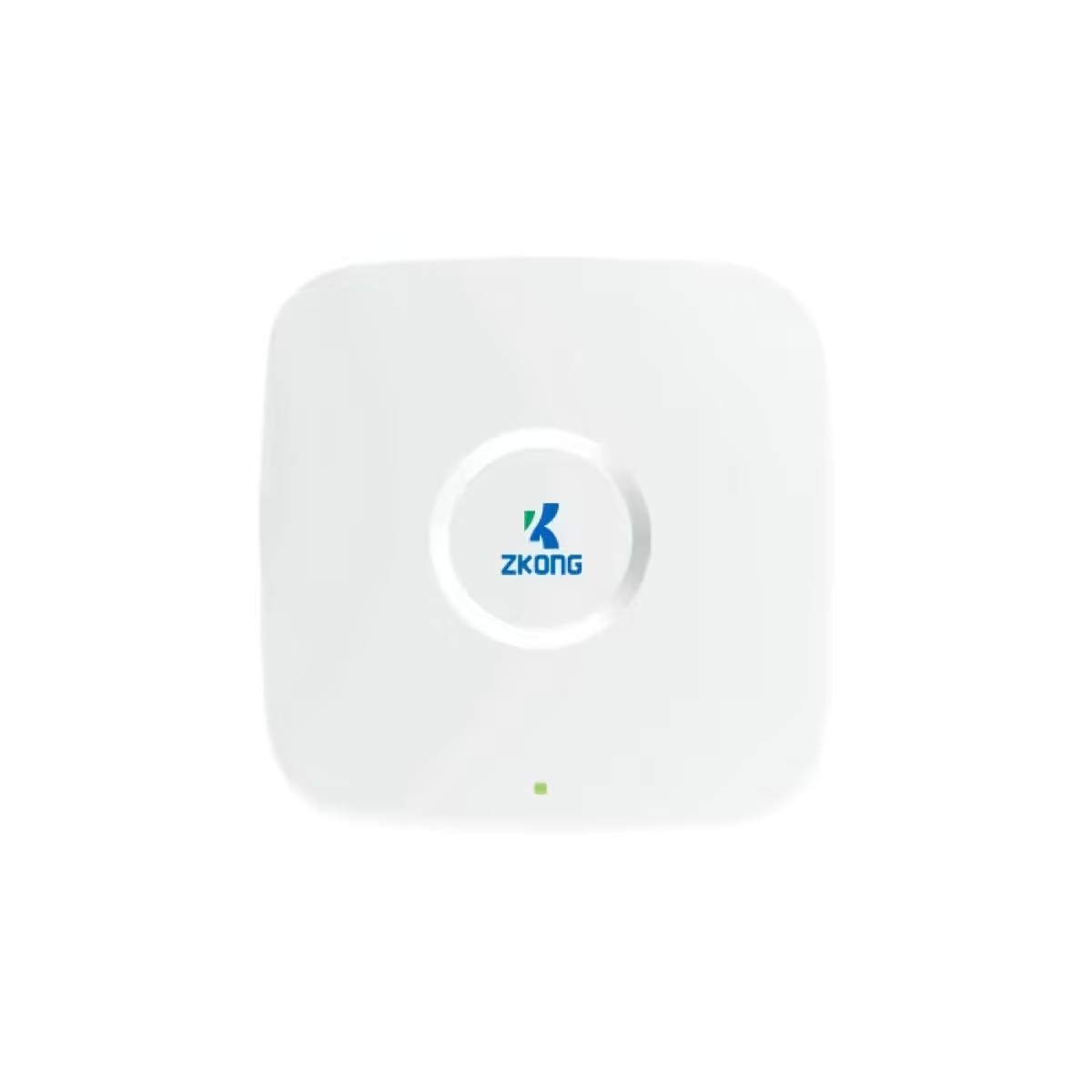

ZKong ZAP-C Wireless Base Station — the electronic label gateway that powers ZKong e-ink price labels, shelf-stretch displays and meeting room units. Distributed in South Africa by Dynamiccom.
Ceiling or wall mounted, powered over a single Ethernet cable (PoE) or 48 V DC, one ZAP-C covers up to 200 m² of floor area. For larger premises, add one unit per additional 200 m².
Specifications
- Mounting: ceiling / wall
- Dimensions: 180 × 180 × 33 mm · 500 g
- Network: 1 × Gigabit Ethernet
- Label radio: BLE 5.1 × 4 modules
- Wi-Fi: dual-band 2.4 GHz + 5 GHz, up to 1167 Mbps
- Antennas: 4-way omnidirectional, 3 dBi, ≤15 dBm
- Power: PoE 802.3af or 48 V DC, 12 W max
- Processor: QCA9563 @ 775 MHz · 128 MB RAM · 16 MB flash
- Operating range: −10 to +60 °C
- Coverage: 1 per 200 m²
This electronic label gateway is required hardware for all ZKong electronic shelf labels, shelf-stretch displays and meeting room schedule units — added automatically when you order them. Pricing excludes VAT. E&OE.
| Weight | 0,5 kg |
|---|---|
| Dimensions | 18 × 18 × 3,3 cm |
